Stair Lift
Care starts with easier stairs.
Product Description
Engke Stair lift can help aged or disabled people go up or go down the stair by themselves, which solve the inconvenience of aged people.
This product is easy for installation. It only occupies rail which on the left or right of stair to function. It will not ruin any family facility, especially suit for decorated family.
There are two main types of stairlifts: straight and curved.
Straight
If your staircase consists of a single uninterrupted flight leading to a top landing or hallway without any middle landings, a Straight Stairlift is the ideal choice. The Engke Straight Stairlift provides the simplest solution for straight staircases, operating on a single rail that is securely fixed to your stairs.
The chair is designed to fold away neatly, allowing others to use the staircase safely when the lift is not in operation. With its smooth start-and-stop mechanism, the Engke Stairlift ensures a comfortable and effortless ride up and down the stairs.

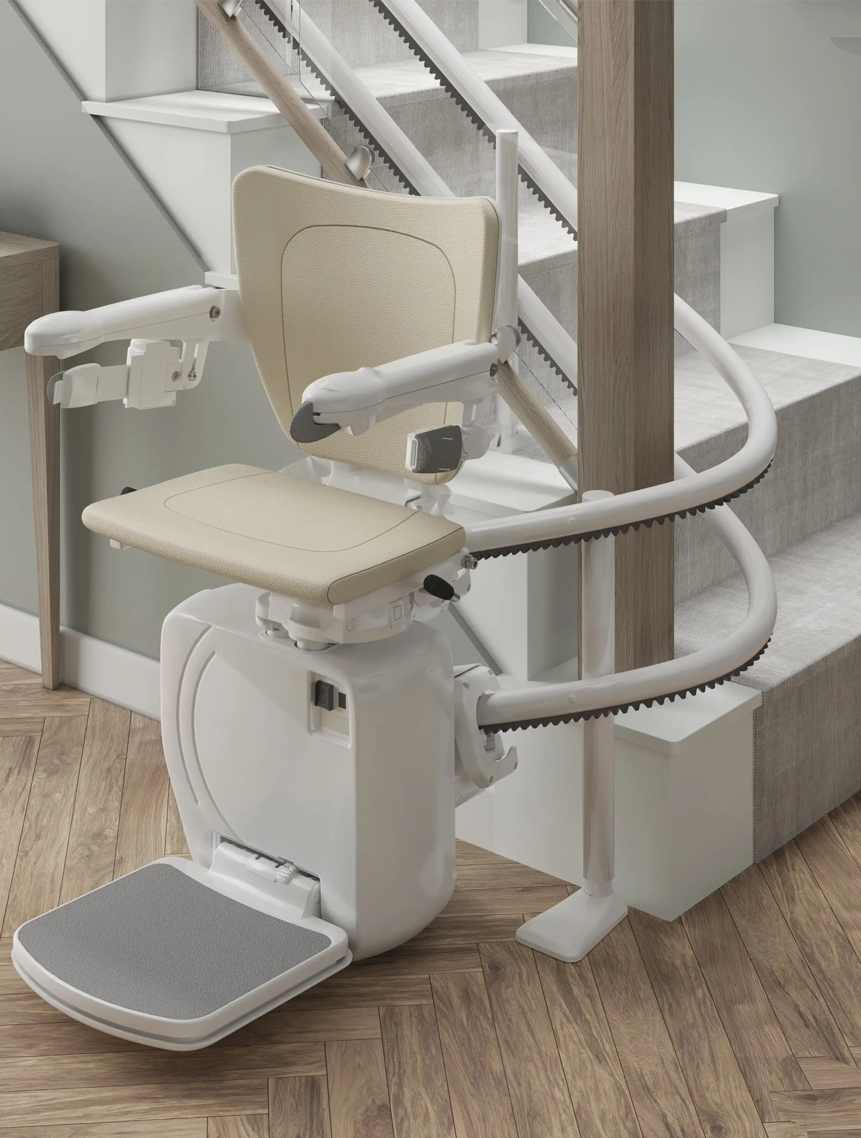

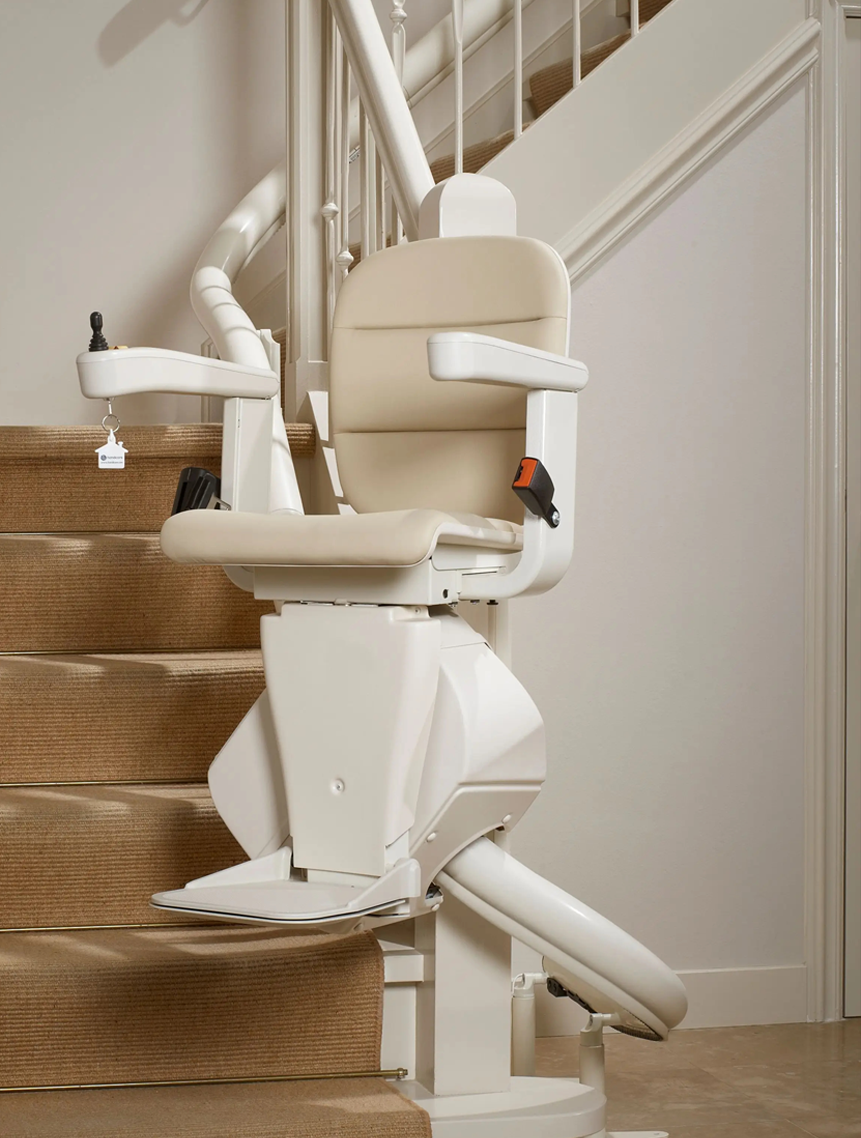

Curved Stairlift
If your staircase has turns, intermediate landings or limited space at the top or bottom, you may require a Curved Stairlift.
Using a unique modular system, accurate measurements enable Engke to tailor-make a stairlift rail which closely follows the contour of your staircase. Engke stairlifts are designed to suit your individual home and lifestyle and include space-saving features such as 180 parking bends at the top of the staircase.
A curved staircase can accommodate a wide variety of designs and measurements, from spiral to fanned or half or quarter landings. Due to the individual nature of curved staircases, our rails are custom made for each home. Engke Curved Stairlifts can reach more than one floor and can travel around tight corners.
Product Parameters
| Product Name | ENGKE Stair lift |
| Speed | 0.12 m/s |
| Driver | DC brush motor + self-locking gearbox |
| Drive Motor Power | 350W |
| Operating Voltage / Current | 24V / 0–18 A |
| Rail Angle | 25°–55° |
| Charging Voltage / Current | 100–240V / 1.2 A |
| Charging Method | Automatic charging at both ends of the rails |
| LED Display on Handrails | Shows operating status and fault codes |
| Safety | Secure safety belt |
| Control | Easy-to-use paddle controls |
| Child-Friendly | Lockable on/off switch for safety |
| Protection | Safety sensors stop the lift if blocked |
| Comfort | Swivel seat (locks at 45° or 90°) |
| Convenience | Two wireless remote controls |
| Space-Saving | Compact design with foldable seat, arms, and footrest |
| Maintenance | Easy to maintain with diagnostic guidance |
| Installation | Quick installation on the stairs, not the wall |
| Capacity | Weight capacity: 120 kg (20 stone) |
| Staircase Requirement | Fits staircases as narrow as 65 cm (25 inches) |
Description
Parameters
Details
Removable seat cushion and backrest for easy cleaning.
Fast charging with overcharge protection.
Two wireless remote controls allow you to summon the power stair climber to any designated location.
Equipped with a seat belt for safe rides.
High-strength welding for safer, stronger support.
A stable rack-and-pinion drive system delivers smoother and safer operation.
Built to last: curved rail uses 4mm thick round tubing.
Installation is available for staircases wider than 72 cm.
Built-in overspeed governor ensures stable and uniform speed during descent.
The stairlift is equipped with side-mounted safety sensors. When an obstacle is detected on the staircase, the seat will automatically come to a stop.
Equipped with an ultra-quiet motor that runs cool with minimal power, delivering steady performance and exceptional durability.
Compact design with wall-hugging rails — the seat folds neatly, requiring just 35 cm of space.
