Stair Climbing Wheelchair
Product Description
Overview:

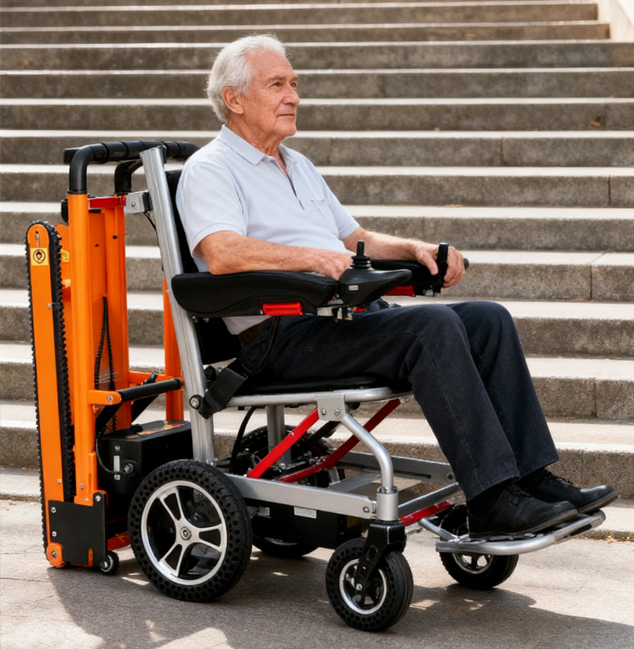

Designed specifically for old and narrow staircases, this wheelchair combines the functionality of an electric stair climber and a powered wheelchair in one easy-to-use, detachable unit. Perfect for residential buildings, narrow stairwells, villas, and park steps, it provides a safe, smooth, and convenient solution for seniors and people with mobility challenges.
Key Features:
• 2-in-1 Functionality: Electric stair climbing + powered wheelchair; a single unit is all you need for both flat ground and stairs.
• Detachable Design: Split-type construction allows easy assembly and transportation.
• Simple Control Panel: Only 6 buttons for easy operation:
• Up Stair
• Down Stair
• peed Increase
• Speed Decrease
• Light
• Power On/Off
• Battery level dynamically displayed
Advanced Track System:
• Tank-style Tread: Thickened and widened for stable, non-slip movement.
• Fully Automatic Hydraulic Track: One-touch opening/closing, adjustable rear tilt angle according to staircase slope, durable with no wear parts. Hydraulic rods are protected with reinforced covers to prevent damage.
Safety Features:

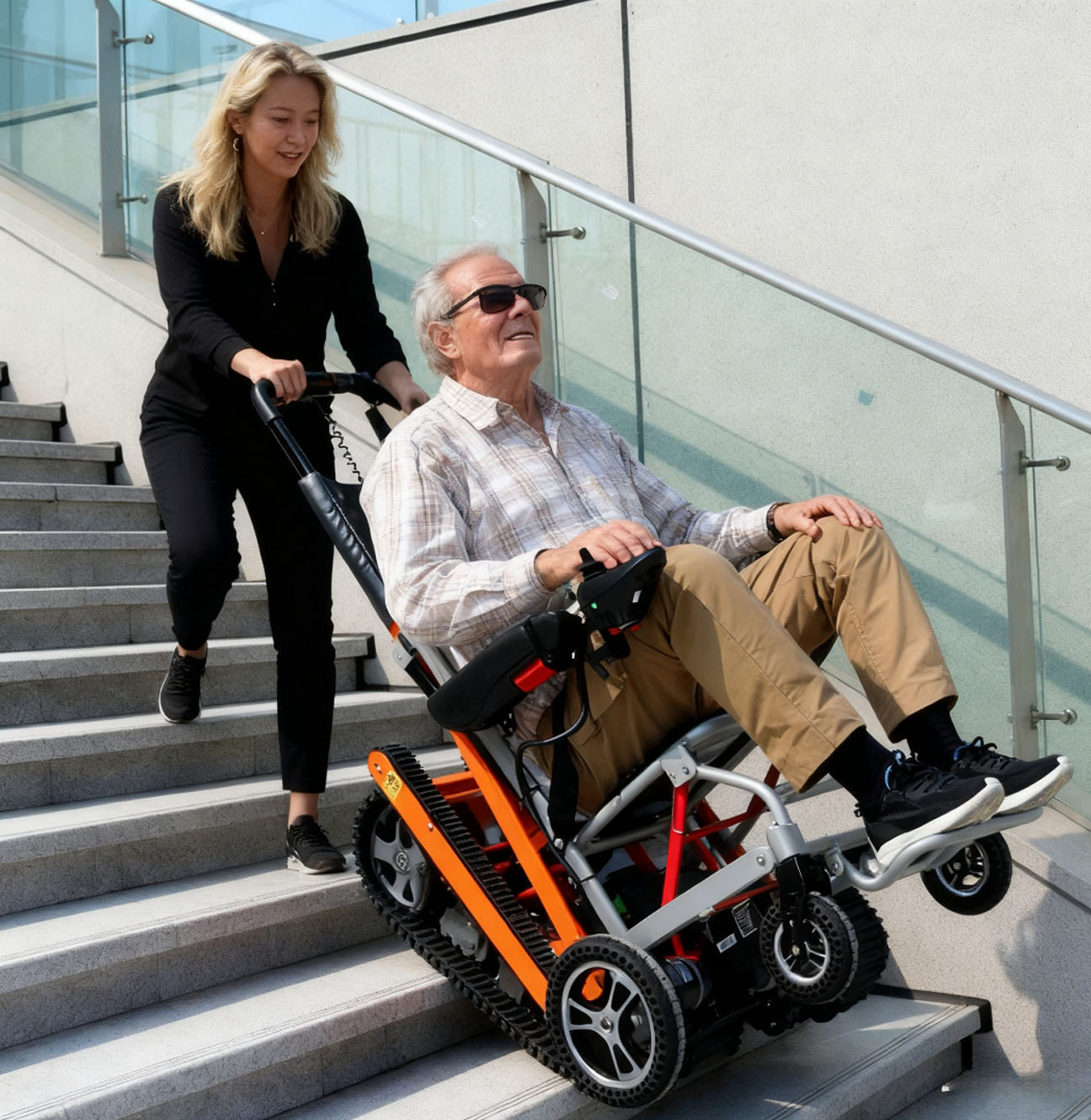

• Hover Lock Technology: Releases hands, clicks automatic safety lock; treads lock onto three steps for stable, effortless climbing.
• Electromagnetic Brakes: Instant stop when hands are released, ensuring safe uphill and downhill operation.
Product Parameters
| Series | MINI | Standard | Smart |
Detachable <Detachable Electric Seat> |
| Product Dimensions | 85*55*146cm | 138*64*157cm | 105*65*157cm | 90*60*152cm |
| Folded Dimensions | 97*55*37cm | 107*64*33m | 100*65*33cm | 95*60*38cm |
| Stair Dimensions | 0.88*0.85 | 1.3*1.3m | 1.1*1.1m | 1.2*1.2m |
| Weight | 27 kg | 35 kg | 45 kg | 45 kg |
| Motor | Brushless Motor | Brushless Motor | Brushed Motor | Brushless Motor |
| Wheels Size | 3/5 IN | 5/10 IN | 5/10 IN | 5/13 IN |
| Climbing Height | Up to 2000 steps | Up to 2000 steps | Up to 2000 steps | Up to 4000 steps |
| Seat Dimensions |
Seat Width: 37cm Seat Height: 47cm |
Seat Width: 41cm Seat Height: 50cm |
Seat Width: 43cm Seat Height: 50cm |
Seat Width: 36cm Seat Height: 50cm |
| Features | Electric Stair Climbing & Manual Push on Flat Ground | Electric Stair Climbing & Manual Push on Flat Ground | Electric Stair Climbing & Motorized Wheelchair | Electric Stair Climbing & Motorized Wheelchair |
| Battery Voltage | 13AH | 13AH | 13AH | 2*13AH |
| Load Capacity | 160kg | 160kg | 160kg | 180kg |
| Track Retraction | Manual Opening | Electric Opening | Manual Opening | Electric Opening |
| Wheelchair Power | 300w | 300w | 300w | 250w*2 |
Description
Parameters
Details

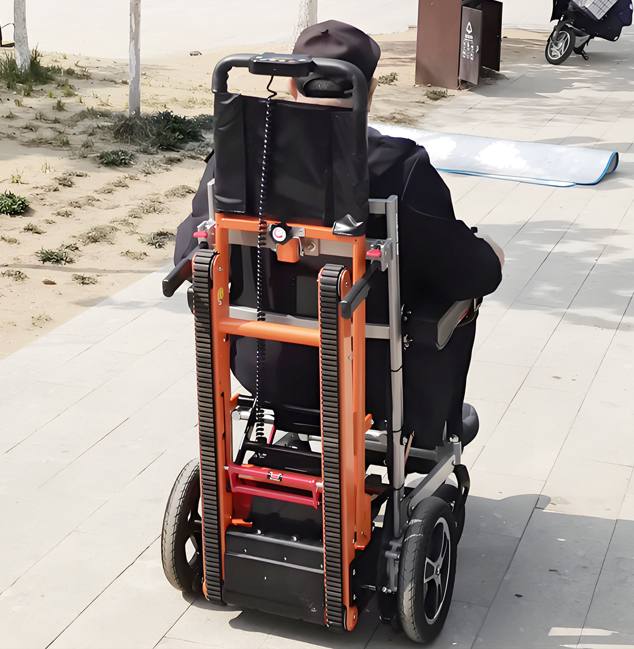

Entire vehicle made with aluminum alloy frame and strengthened fish-scale welding.

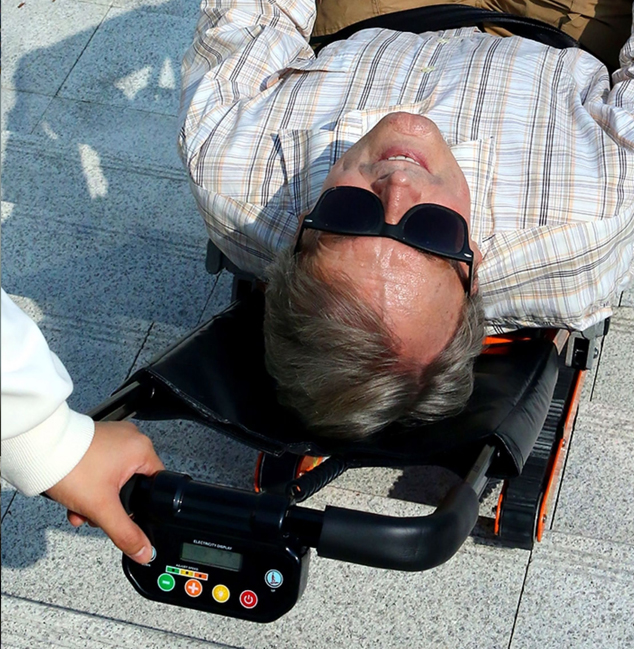

The panel has only 6 buttons, making operation simple.
Reinforced tank-style cross-pattern track, extra wide and thick, wear-resistant and slip-proof.
Automatic hydraulic push rod with heavy-duty protective cover, ensuring durability and deformation resistance.
Oversized pneumatic shock-absorbing tires, offering stronger cushioning and slip resistance.
High-performance brushless motor, durable for up to 30,000 hours of use.
Durable car-grade seat belt with dual protection for extra safety.
Swing-up armrest design, making entry and exit more comfortable.
Oversized footrest, providing more comfortable support for your feet.
Extra-thick seat and back cushions for enhanced comfort.
Wheelchair with convenient hand control console.
Freely adjustable backrest rod for personalized comfort based on height.
